Raman / PL Spectroscopy

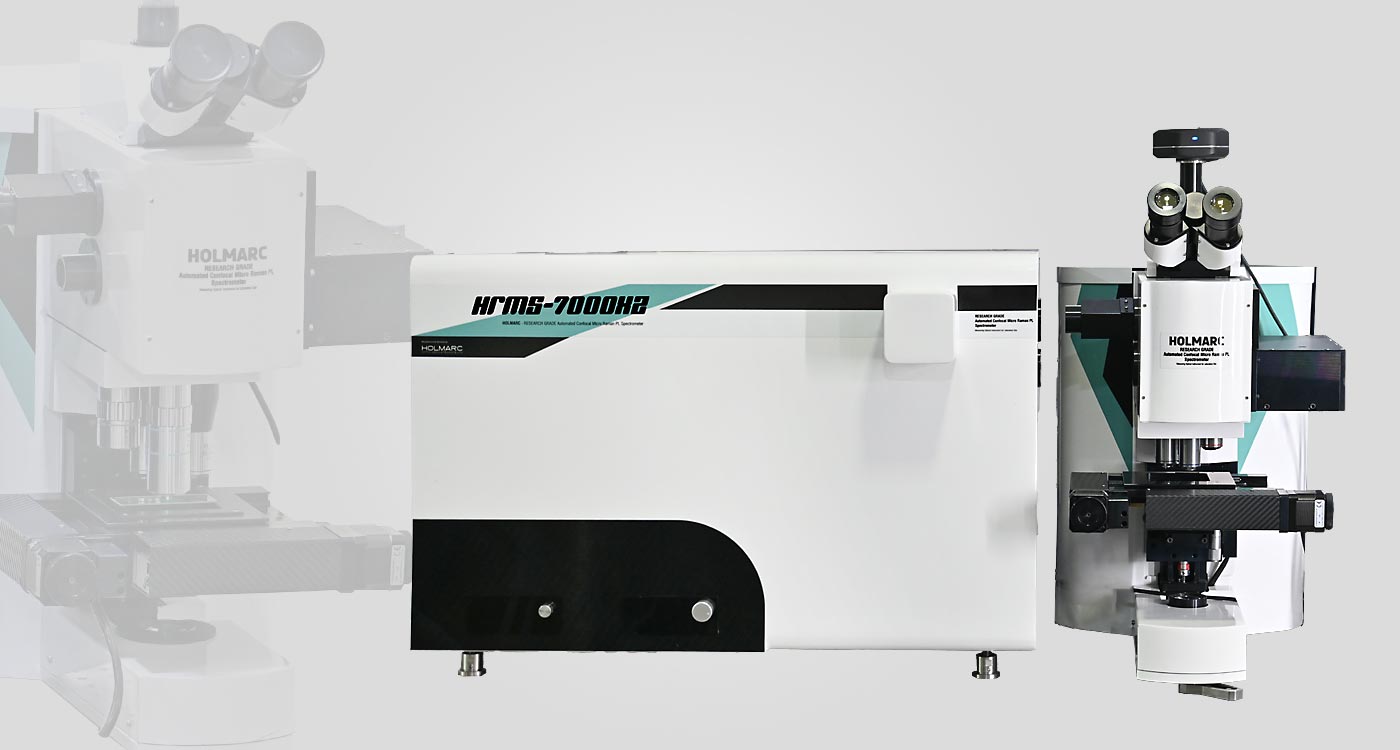

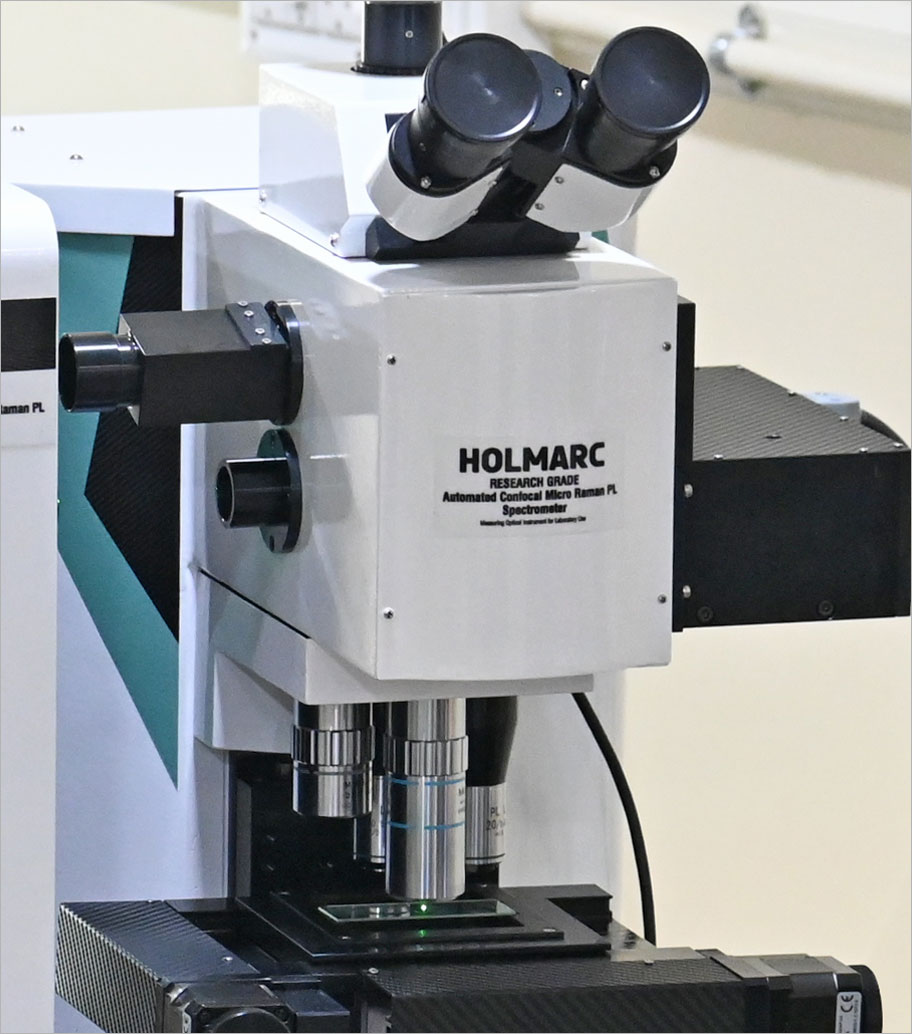

The HRMS-7000 Series is a fully integrated Confocal Raman Microspectrometer engineered for high-resolution Raman, Photoluminescence (PL), and hyperspectral chemical imaging. Designed for multidisciplinary research, the system integrates a mirror-based spectrograph, precision confocal microscope, thermoelectrically cooled CCD detector, motorized stages, and advanced multivariate analysis software in a unified platform.
The HRMS-7000 delivers high-sensitivity Raman and Photoluminescence analysis with sub-micron spatial resolution. Built around a precision mirror-based spectrograph and integrated confocal microscope, it provides unmatched flexibility for material science, nanotechnology, semiconductors, polymers, forensics, and life sciences.
| Laser | |
| TE-cooled 2 Laser system with auto selection mechanism and integrated power calibration function (# other wavelengths on request) |
|
| Coupling Option | Directly Coupled, Expandable to 8 motorized laser |
| 785nm CW Laser (RAMAN) | |
| Output Wavelength | 785 nm |
| Output Power | 300 mW |
| Spatial Mode | DPSS Laser |
| Multi-Laser Support | Multi-mode |
| Power Stability | < 3% over 4 hours |
| Temperature Control | Thermoelectric Cooler (TEC) |
| Warm-up Time | < 1 minute |
| Mean Time to Failure (MTTF) | 10,000 hours |
| Laser | Software-Controlled |
| 532nm CW Laser (RAMAN + PL) | |
| Laser Type | Low Noise |
| Variable Power | DPSS Laser |
| Output Wavelength | 532 nm |
| Output Power | 100 mW |
| Operating Mode | Continuous Wave (CW) |
| Spatial Mode | TEM₀₀ |
| Beam Diameter | ~ 1.5 mm |
| Beam Divergence (Full Angle) | < 1.5 mrad |
| Power Stability | < 2% (over 4 hours) |
| Noise Level | Low Noise Design |
| Cooling Method | Thermoelectric Cooler (TEC) |
| Mean Time to Failure (MTTF) | > 10,000 hours |
| Laser | Software-Controlled |
| Mapping Stage | |
| Mapping sample stage | XYMR50 Motorized Stepper motor controlled |
| Travel | 50 x 50 mm |
| Sample Holding | Up to 120 mm |
| Resolution | 0.3125 Micron |
| Scanning Speed | 4 mm / sec |
| Focusing | Motorized Stepper motor controlled |
| Travel | 25 mm |
| Resolution | 0.1 Micron |
| Motorized Z axis | 10 nm step resolution |
| Controller | HOLMARC XYZ Stepper controller Unit |
| Scanning | Programmable |
| Joystick | 3 Axis Joystick controller |
| Raman Spectrometer | |
| Lasers | Combination with a motorized selection option |
| External Laser Integration Option | Yes, Via. External laser selection port attachment |
| Total eight lasers can be supported (including Internal Laser) | |
| Spectrometer Type | Czerny-Turner |
| Grating mount | 4 Grating Motorized Turret type |
| Gratings | 300 l/mm, 600 l/mm,1200l/mm and 1800l/mm |
| True / Adjustable confocal facility | Confocal pinholes / Motorized slit with automated signal optimization |
| Software selectable pinholes and slits | Yes |
| Spectrometer Focal Length | 400 mm |
| Raman Spectral range | 100cm-1 - 8000 cm-1 |
| Spectral resolution | 0.45 cm-1 |
| Scan to scan repeatability / reproducibility : < 0.25 cm-1 | |
| Calibration Option : Auto calibration with Si, Cyclohexane, Neon / Mercury Calibrations | |
| Software-controlled neutral density filter wheel (64 positions) | |
| Edge filters optimized for low-wavenumber measurements | |
| Adjustable motorized confocal pinhole / slit arrangement | |
| Imaging Camera System | |
| Optical format | 1/2.5” CMOS |
| Active image size | 5.70 mm x 4.28 mm, 7.13 mm diagonal |
| Active pixels | 2592 x 1944 (5Mp) |
| Pixel size | 2.2 x 2.2 um |
| Color filter array | RGB Bayer pattern |
| Shutter type | Global reset release (GRR), Snapshot only, Electronic rolling shutter (ERS) |
| Maximum data rate / Master clock | 96 Mp/s at 96 MHz (2.8 V I/O) |
| Frame rate : Full resolution - Programmable up to 15 fps, VGA (640 x 480 with binning) - programmable up to 70 fps | |
| ADC resolution | 12-bit, on-chip |
| Pixel dynamic range | 70.1 dB |
| Operating temperature | -30°C to +70°C |
| Exposure Mode | Support Auto Exposure / Manual Exposure / Single Exposure |
| LabVIEW Compatible Software | Yes |
| Data Interface | USB 3.0 interface |

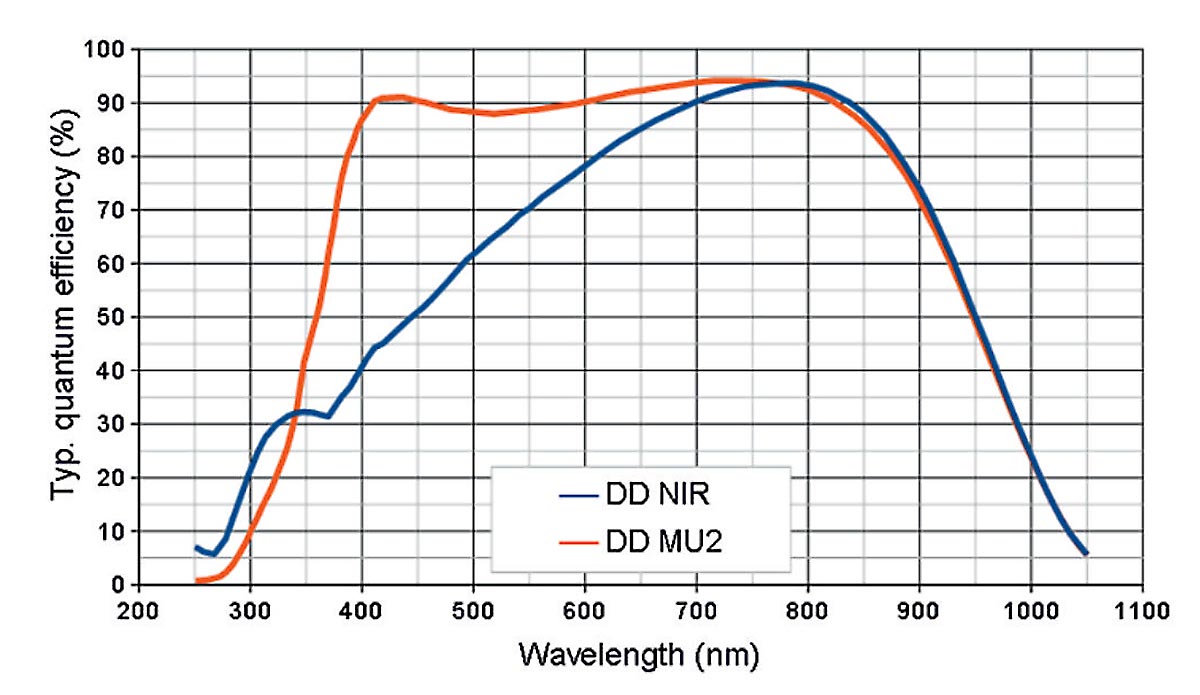

| Spectrometer Detector | |
| Scientific Grade CCD Camera | |
| High Performance Full-Frame CCD Camera for Low Light Level Imaging or Spectroscopy in the UV / VIS / NIR Range with USB 3.0 & GigE Interfaces | |
| Pixel Frequency | Standard 50 kHz, 100 kHz, 250 kHz, 500 kHz, 1 MHz, 3 MHz (can be customised from 25 kHz - 5 MHz) |
| ADC Resolution | 18 bit |
| Linearity | Better than 99% |
| Window Material | MgF2 or UVFS for UV sensitive models, otherwise BK7 |
| Flange - Focal Plane | 10.0 mm |
| Temperature Monitoring | Two thermistors at CCD sensor and thermoelectric cooler |
| Binning | Fully flexible |
| CCD Sensor Cooling | -100°C to 20°C, forced air or liquid cooling |
| Cooling System | Multistage thermoelectric cooler |
| Camera Interface | USB 3.0, Gigabit Ethernet |
| Trigger (TTL) | Exposure out, Shutter out, External trigger in |
| Architecture | Full-frame, Non-inverted mode (NIMO) |
| Type | Back-illuminated, Deep depletion, Enhanced process |
| AR Coating | Multi-2 annti-reflection coating |
| Pixel Format | 1024 × 255 |
| Image Area | 26.6 mm × 6.7 mm |
| Pixel Size | 26 μm × 26 μm |
| Full-Well Capacity | 700,000 (typical) |
| Dark Signal | ~0.005 / pixel/s (typical) at -100°C |
| Typical Read Noise | 5.4 @ 50 kHz, 12.3 @ 1 Mhz and 25.0 @ 3 MHz |
| Software |
| Unified control and analysis software including : Autofocus, Raman/PL mapping, H yperspectral imaging,C hemical imaging, 3D focus stacking, Spectral library search , Baseline correction & peak deconvolution etc. |
| System Control and Data Collection software including Software for Sample Viewing |
| Fluorescence Correction |
| Multiple Algorithms for background subtraction, Peak intensity, width, position & curve fitting |
| Automated Switching between White Light and Raman |
| Combined White Light and Laser Video Viewing |
| Auto-calibration |
| Calibration with Si sample, Cyclohexane |
| Calibration Lamp |
| Type : Wavelength Calibration |
| Calibration Source : Neon / Mercury Lamp |
| Wavelength Calibration : A factory wavelength calibration file will be supplied |
| Raman Imaging (1D, 2D, 3D Hyper spectral Imaging) : Yes |
| Capable of managing user-built libraries and material identification with spectral databases |
Upgrade Options
Expandable architecture supports :
• Additional lasers - Up to 8 laser lines
• AFM coupling
• Heating / Cooling stages
• TERS / TEPL modules
