Nano Fiber Electrospinning Unit


    Print
Industrial Scale Needle-less
Electrospinning Unit

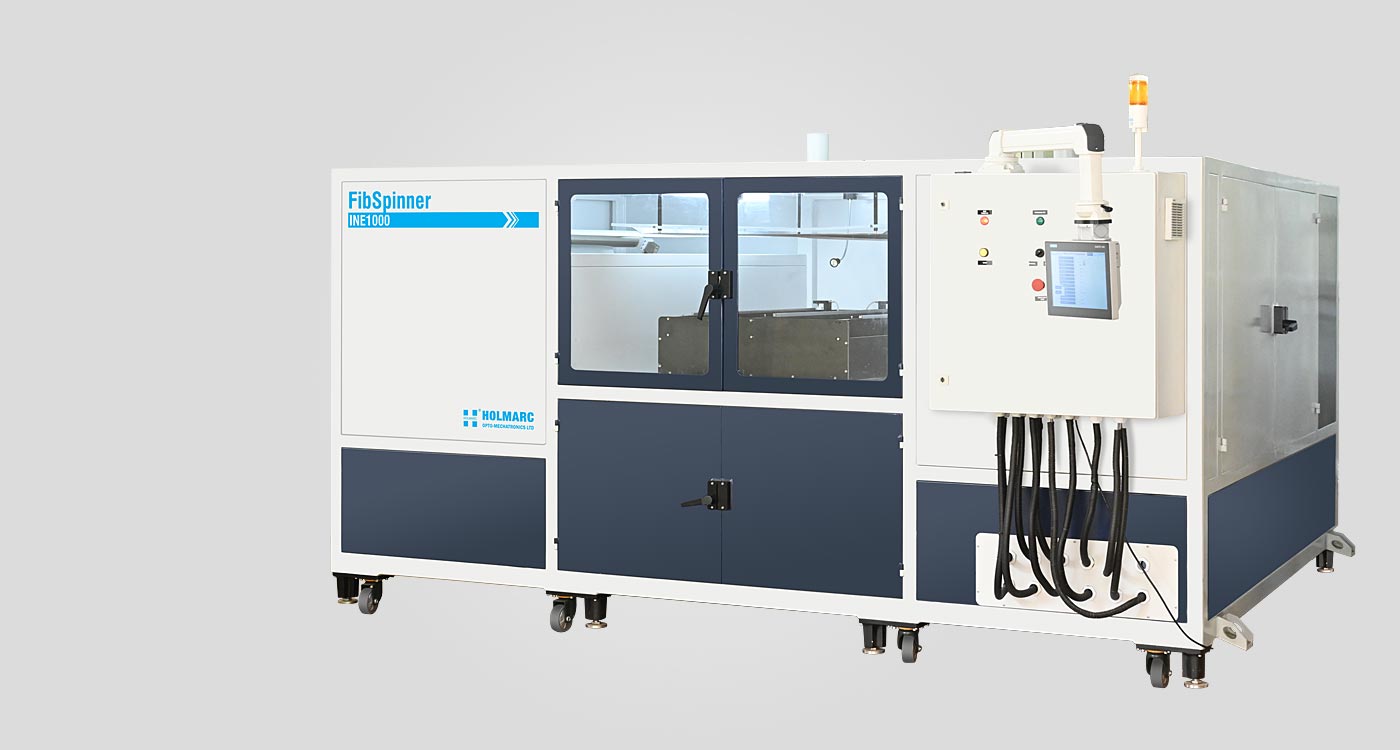

INE1000 FibSpinner
Bottom up Spinning Type
Prices are exclusive of taxes and other charges.

The INE1000 FibSpinner is a high-capacity, needle-less electrospinning unit engineered for industrial-scale nanofiber production. Designed with a bottom-up spinning approach, the unit enables the uniform coating of nanofibers on substrates up to 1000 mm wide using a roll-to-roll mechanism.

Unlike traditional needle-based systems, the INE1000 employs three stainless steel thin-slit spinneret rods to facilitate needle-less electrospinning, significantly reducing clogging, maintenance, and downtime. Each spinneret is fed by an independently controlled peristaltic pump system, offering precise control of flow rate and uniform fiber distribution.

The unit features a high-voltage power supply with adjustable output: 0 to +60 kV for the spinneret and 0 to -40 kV for the collector, with a fine voltage precision of 0.1 kV and a maximum current of 2 mA. The stainless steel slit electrodes measure 1000 mm in length with slit dimensions of 2 mm depth and 4 mm width. Three individual peristaltic pumps allow a flow rate range of 0.01 to 40 ml/min, maintaining precise delivery with a resolution of 0.01 ml/h. The system accommodates a maximum roll diameter of 600 mm and operates at substrate winding speeds from 0.1 to 25.0 m/min. The spinneret-to-collector distance is adjustable from 150 mm to 300 mm with a precision of 1 mm. The power requirement is 230 VAC at 18 A with a maximum consumption of 4200 W.

The system is controlled via a 12” touchscreen interface, allowing operators to configure process parameters, save/load recipes, and monitor system status in real-time. Integrated safety features, including high-voltage interlocks, emergency stop, and overcurrent protection, ensure user safety and equipment integrity.

This platform supports a wide range of polymer viscosities and is ideal for research, prototyping, and commercial-scale nanofiber production applications in sectors like biomedical engineering, filtration, protective textiles, and energy storage.

More +

Feeding Area

    Needle-less Spinnerets     3 thin-slit rods
    Spinneret MOC     Stainless Steel
    Solution Feeding System     Adjustable speed, feeding rate and waiting time
    Thin-Slit Electrode Dimensions
    Electrode Length     1000 mm Slit
    Slit Dimensions     2 mm Depth, 4 mm Width

Pump System

    Three independent peristaltic pump units     Individually connected to each spinneret.
    Tubing     Silicone tube of 2.4 mm ID, 5.6 mm OD
    Flow Rate     0.01- 40 ml/min
    Flow Rate Precision     0.01 ml/h Tank
    Tank Capacity     2 L

Roll to Roll System

    Maximum width of the substrate fabric     1000 mm
    Substrate Winding Speed     0.1 m/min - 25.0 m/min
    Effective Coating Width     1000 mm
    Max Roll Diameter     600 mm
    Air compressor included for tightening roll shaft

High Voltage Power Supply

    Voltage Range
    Spinneret     0 to 60 kV
    Collector     0 to -40 kV
    Voltage Precision     0.1 kV
    Maximum Current     2 mA

User Interface

    12” Touch screen control panel
    Easy to use GUI
    Recipe save and load functions
    Control of process parameters

Safety Function

    HV supply cut off on door open event
    Emergency stop button
    HV Warning Light
    Electrically Isolated & Grounded
    Over Current Protection

Designed and Developed in collaboration with

Supported by
