Metrology Instruments
Autocollimator is a versatile noncontact optical instrument for measuring small angles or tilt movements with very high sensitivity. Holmarc manufactures precision Electronic autocollimators as well as visual autocollimators as standard products and these instruments find a multitude of applications in shop floors as well as metrology labs for precision measurements of straightness, parallelism, perpendicularity and flatness.

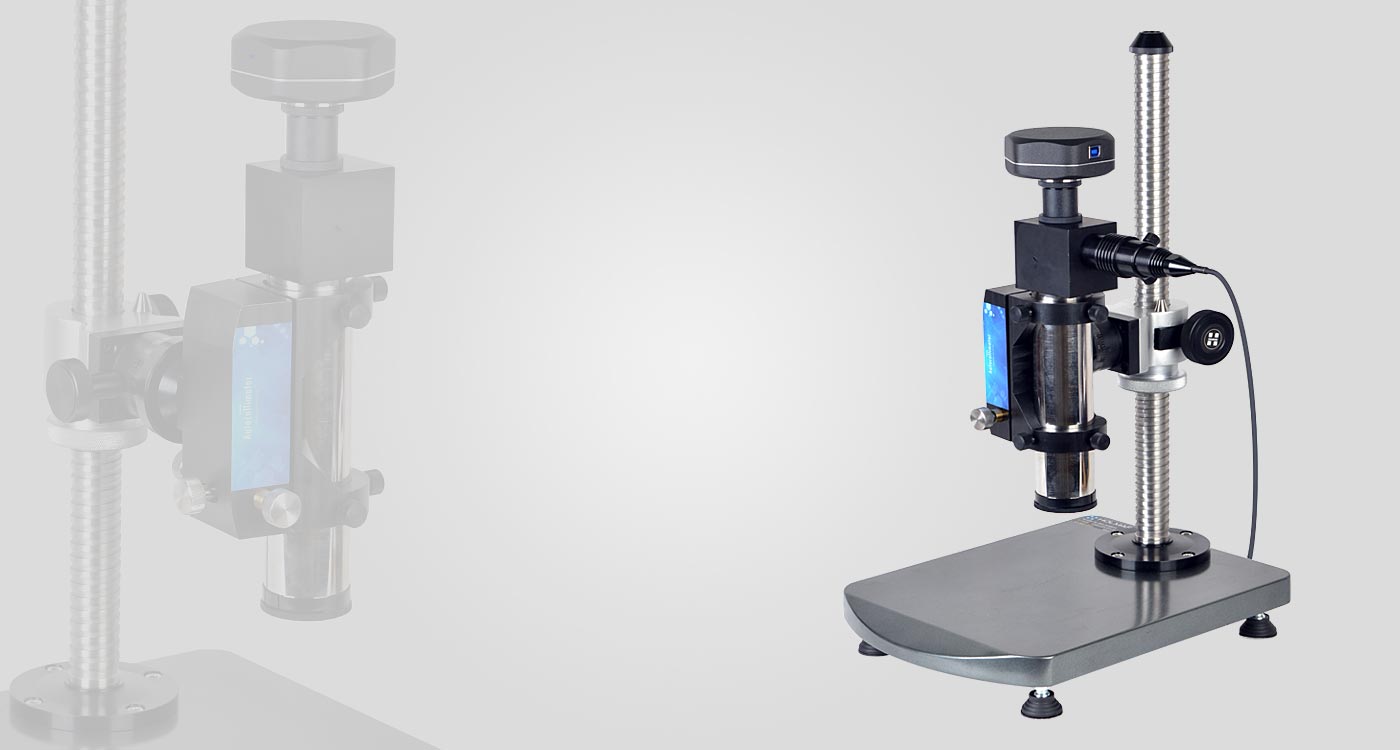

Holmarc’s Electronic autocollimator consists of a stainless steel body, high precision optics with Green LED illumination, and a 5MP CMOS camera. A user friendly software is included with the system for measurements. Autocollimator projects the image of an illuminated reticle onto the object under inspection and receives its reflected image on the camera sensor. The software calculates the shift in the reflected image and shows the corresponding angles in seconds, minutes or degrees.
In most cases, the object under inspection may not have reflective surfaces. In order to carry out the inspection, the operator needs to fix a plane mirror on the object to reflect the image back to the instrument. Holmarc supplies a mounted front coated mirror as a standard accessory.
Established in 1993, Holmarc Opto-Mechatronics Ltd manufactures variety of scientific and engineering instruments for research, industry and education.
