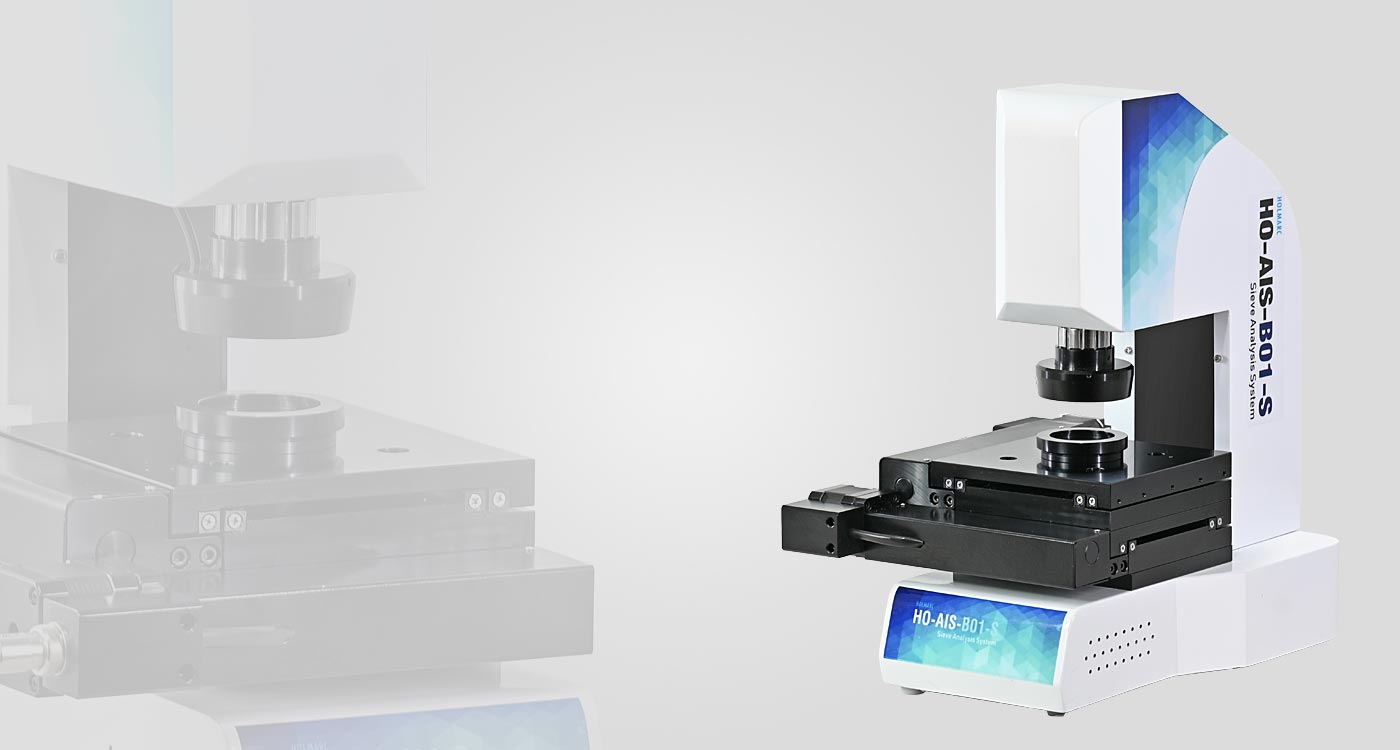

HO-AIS-B01-S is an automated digital microscope designed for Sieve / Mesh analysis. The system is equipped with a 5X microscope objective and a 3MP CMOS color camera for high-resolution image capture. A high bright intensity adjustable ring LED is included for uniform top illumination of the imaging area. LED bottom illumination is also provided for imaging the sieve patterns. A precision motorized XY stage is provided for the automated sample scanning and a motorized Z focusing stage with an autofocus algorithm allows the user to get the best focused image in each frame.
A user-friendly software, Sieve Analysis Pro is included with the system for the automated scanning, stitching, and analysis of Sieves / Mesh. The software uses edge detection algorithm to measure the aperture size, and wire diameter. The sieve inspection reports can be exported to pdf formats and compliance or non-compliance with ISO 3310 standard will be mentioned along with histograms. Custom reporting formats are also available.
Standards : ISO 3310-1 : 2016
