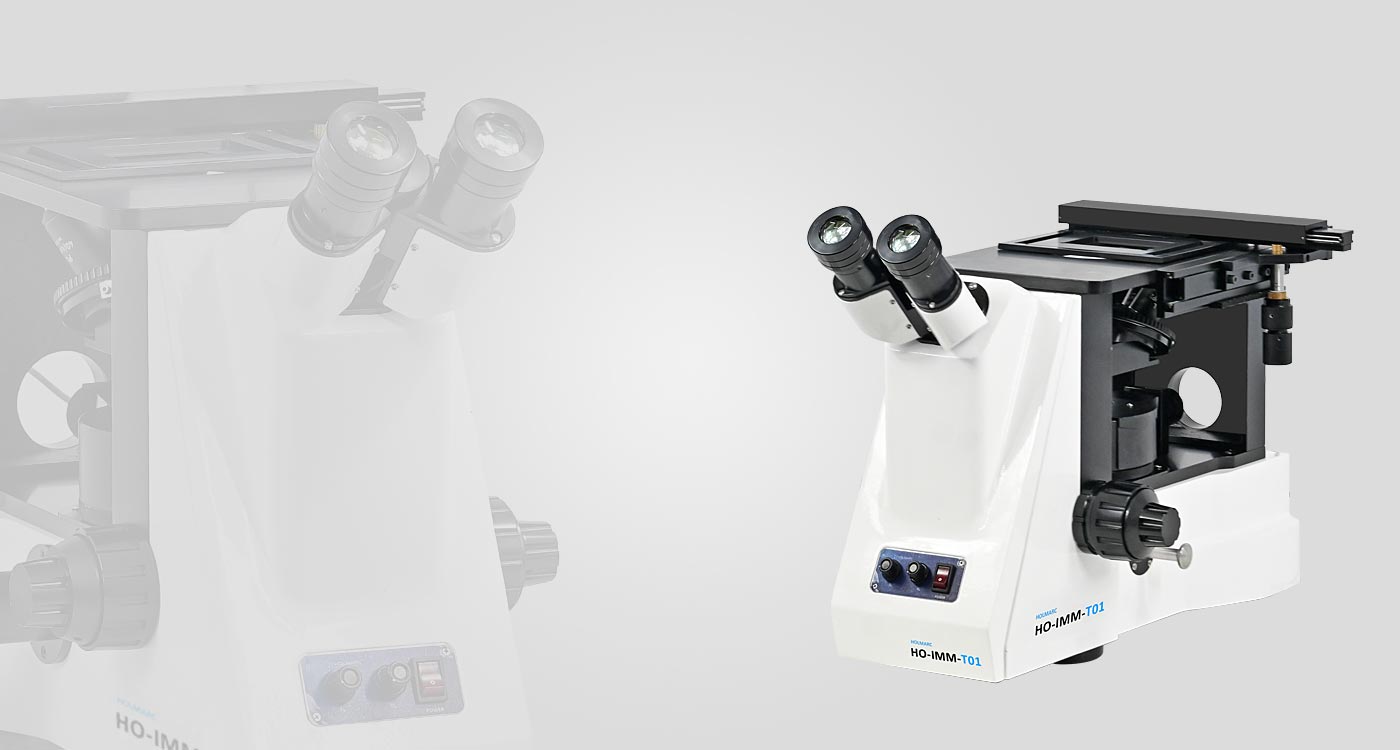

Inverted Metallurgy Microscope
Model : HO-IMM-T01
Price :
Prices are exclusive of taxes and other charges.

HO-IMM-T01 is an Inverted Metallurgy Microscope designed for material analysis and inspection applications. A white LED with adjustable intensity is provided for the reflected illumination. The binocular head is inclined at 45 degrees and both the eyepieces are dioptre adjustable. In addition to the binocular observation, a 5MP color camera is also included for capturing the high quality images. The smooth-operating, ball bearing mounted, quadruple nosepiece provides effortless objective changes. A mechanical stage with co-axial drop down knob is provided as the sample stage. A tension adjustable coaxial coarse and fine mechanism is used for the sample focusing.

An analysis software, Industry Pro, is provided with the system for quantitative analysis of Grain size, Inclusion, Porosity, Cementite, Phase Segmentation, and Nodularity (Ductile Iron, Gray cast Iron). Heyns lineal intersection method, three circle method, Heyns Abrams Intersection method, Random line method etc are used for the grain size measurement. Every measurement and report is generated in compliance with international standards. Custom reporting formats are also available.
