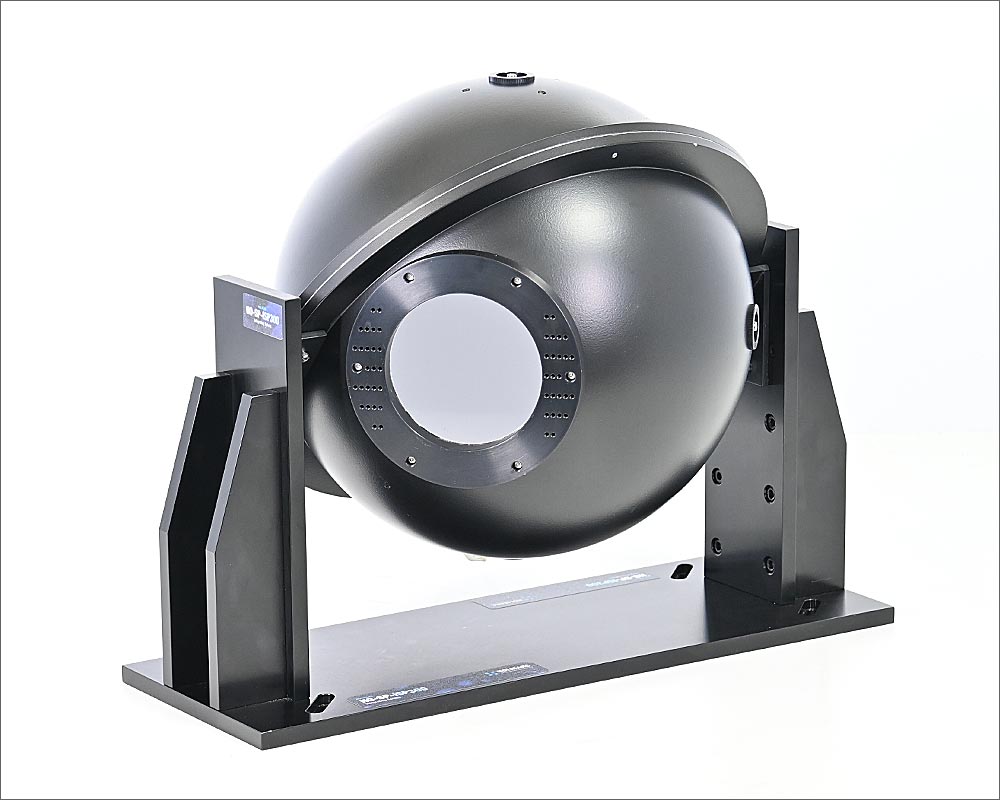

Integrating Sphere

HO-SP-ISP Series

An integrating sphere is a valuable tool used in various scientific and industrial applications to measure and manipulate light. It's essentially a hollow sphere with a highly reflective inner coating, typically made of a diffuse white material. This special coating ensures light entering the sphere scatters and reflects multiple times before exiting through a designated port.

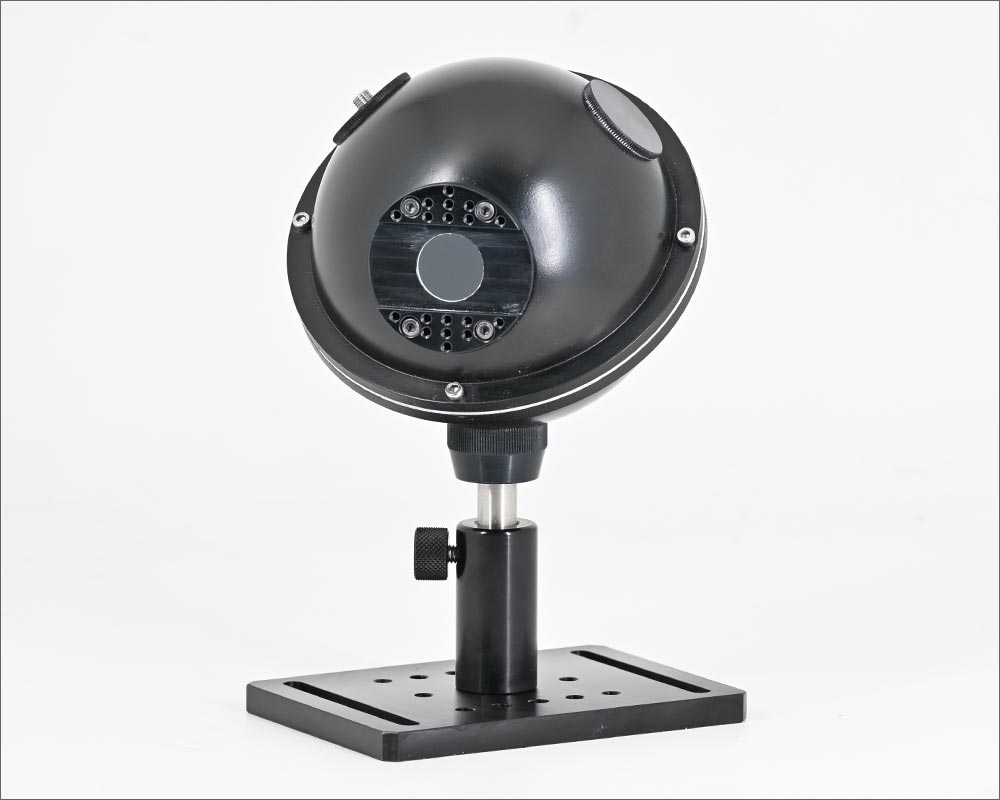

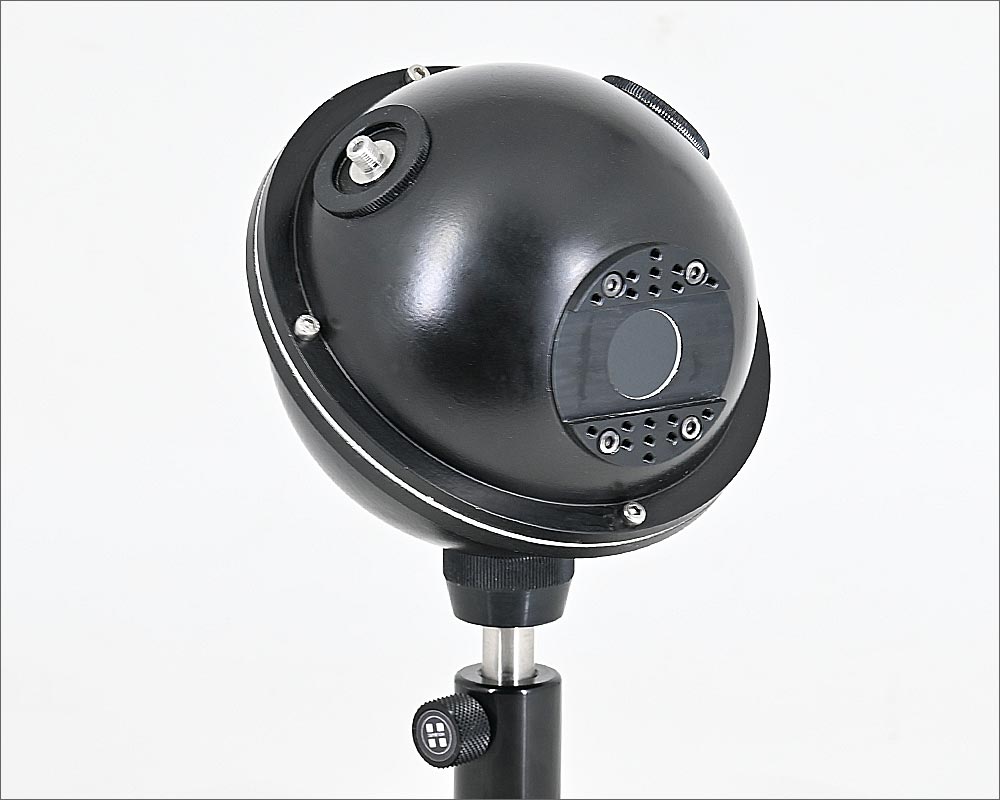

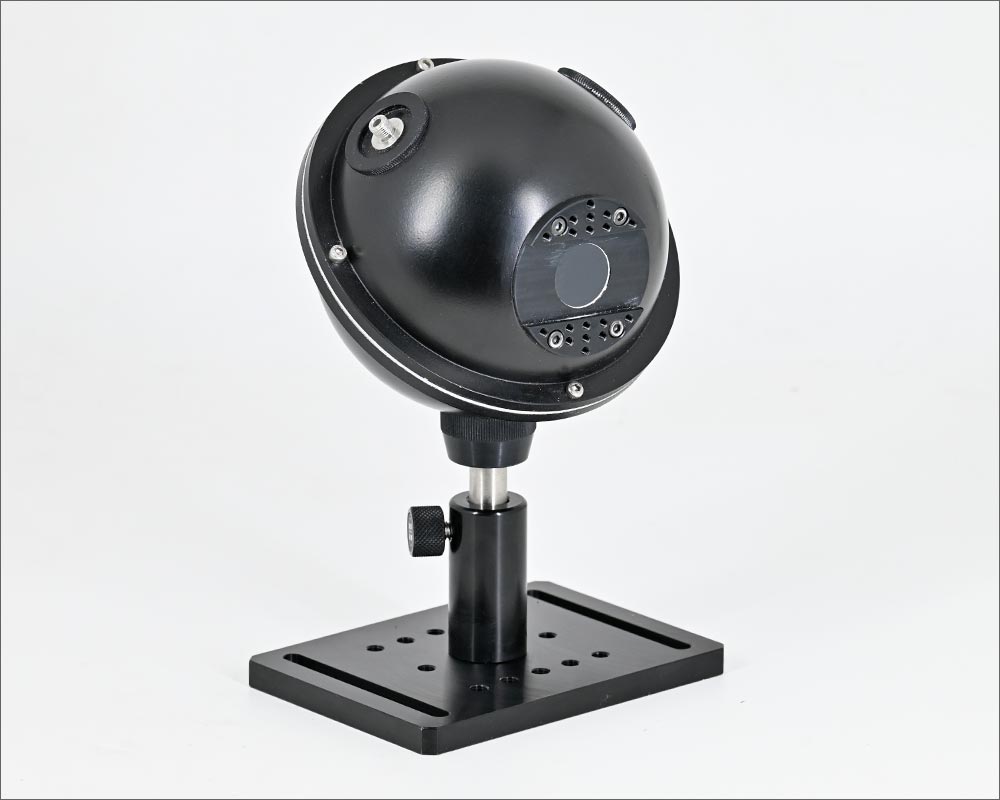

Holmarc integrating spheres a comes with different diameters, ports and detector configurations. The body material is aluminum and the inner walls are highly polished and coated with diffused reflecting material. Baffles are fixed inside to reduce the direct light entry to the detector port.

Custom Integrating spheres are available up to 300 mm diameter and different port configurations.

    HO-SP-ISP-50
        Sphere size :     50 mm
        Coating :     BaSO4 mix
        No. of ports :     3
        Port size :     12.5 mm
    HO-SP-ISP-100
        Sphere size :     100 mm
        Coating :     High reflective BaSO4 mix
        No. of ports :     4
        Port size :     25 mm
        Fiber coupling port :     Optional
    HO-SP-ISP-150
        Sphere size :     150 mm
        Coating :     High reflective BaSO4 mix
        No. of ports :     4
        Port size :     25 mm
        Fiber coupling port :     Optional
    Optical fiber coupler option - Yes
    Detector Options
        UV Silicon photodiode for 190 nm - 1100 nm
        InGaAs detector for 900 nm - 2400 nm
        Radiometry and photometry
        Material characterization
        LED and laser testing
        Spectroradiometer
        Diffused reflection
        Hyper spectral characterization
        Reflectance and Transmittance characterization
