Stepper Motors


Nema 17 High Vacuum
Compatible Stepper Motor
Model : 42ST40-1A-V
Prices are exclusive of taxes and other charges.

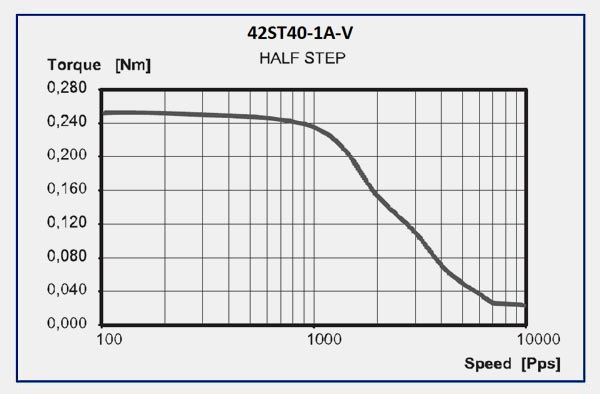

Speed vs. Torque Characteristic

    Model     42ST40-1A-V
    1        Rated Voltage V         4
    2        Current / Phase A         1
    3        Resistance / Phase Ω         3.3
    4        Inductance / Phase MH         3.4
    5        Holding Torque NM         0.259
    6        Rotor Inertia G-CM2         54
    7        Weight KG         0.28
    8        Number of Leads Nº         4

Construction Materials

    Core :     Stainless Steel - Grade SS430
    Shaft :     Stainless Steel - Grade 304
    Bearings :     Stainless Steel - Grade 410
    Side Plates :     Aluminium - 6061
    Plastic Parts :     Teflon
    Coil Wire :     Class H (150º C) enameled copper with polyamide-imide overcoat

Electrical Specifications

    Rated Voltage :     4 V
    Current per Phase :     1 A
    Resistance / Phase :     3.3 Ohm
    Inductance / Phase :     3.4 mH
    Holding Torque :     0.259 Nm
    Step Angle :     1.8 degrees
