Stepper Motors


Nema 23 High Vacuum
Compatible Stepper Motor

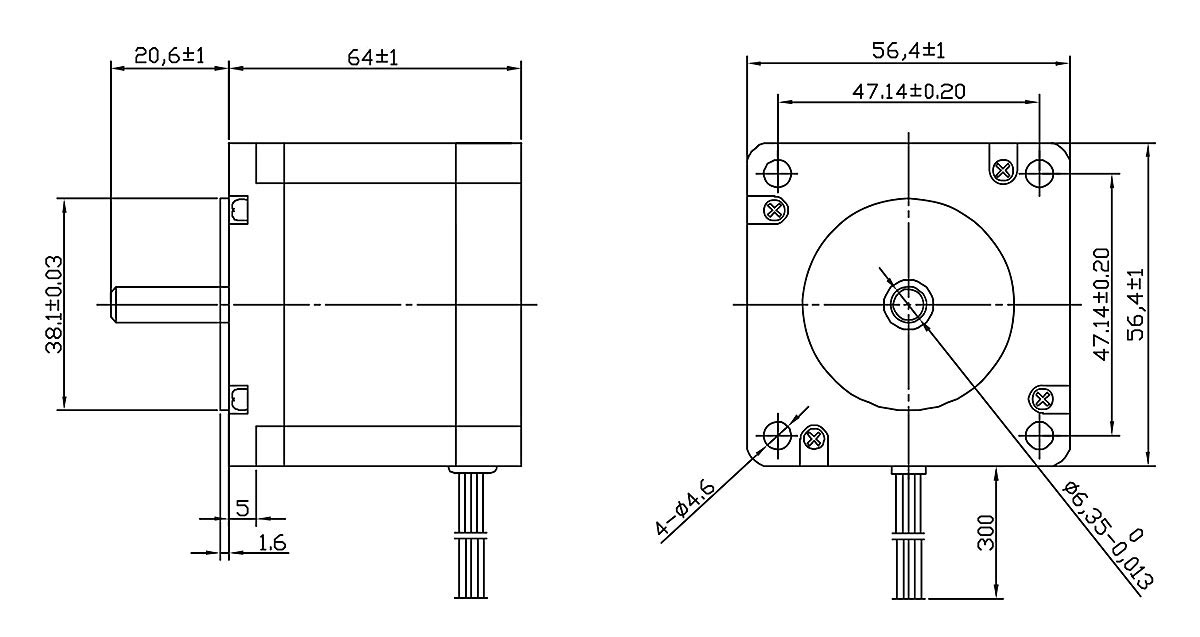

Model : 57ST51-4A-V

1.    Rotor, stator, bearings and shaft are made in Stainless steel

2.    Windings and insulations can support a maximum temperature of 150°C

3.    Winding coil extended outside without soldering for external connections.

Speed vs. Torque Characteristic

    Model     57ST51-4A-V
    1        Rated Voltage V         2.3
    2        Current / Phase A         2.8
    3        Resistance / Phase Ω         0.83
    4        Inductance / Phase MH         2.2
    5        Holding Torque NM         0.45
    6        Rotor Inertia G-CM2         275
    7        Weight KG         0.65
    8        Number of Leads Nº         4
