Lab Equipment

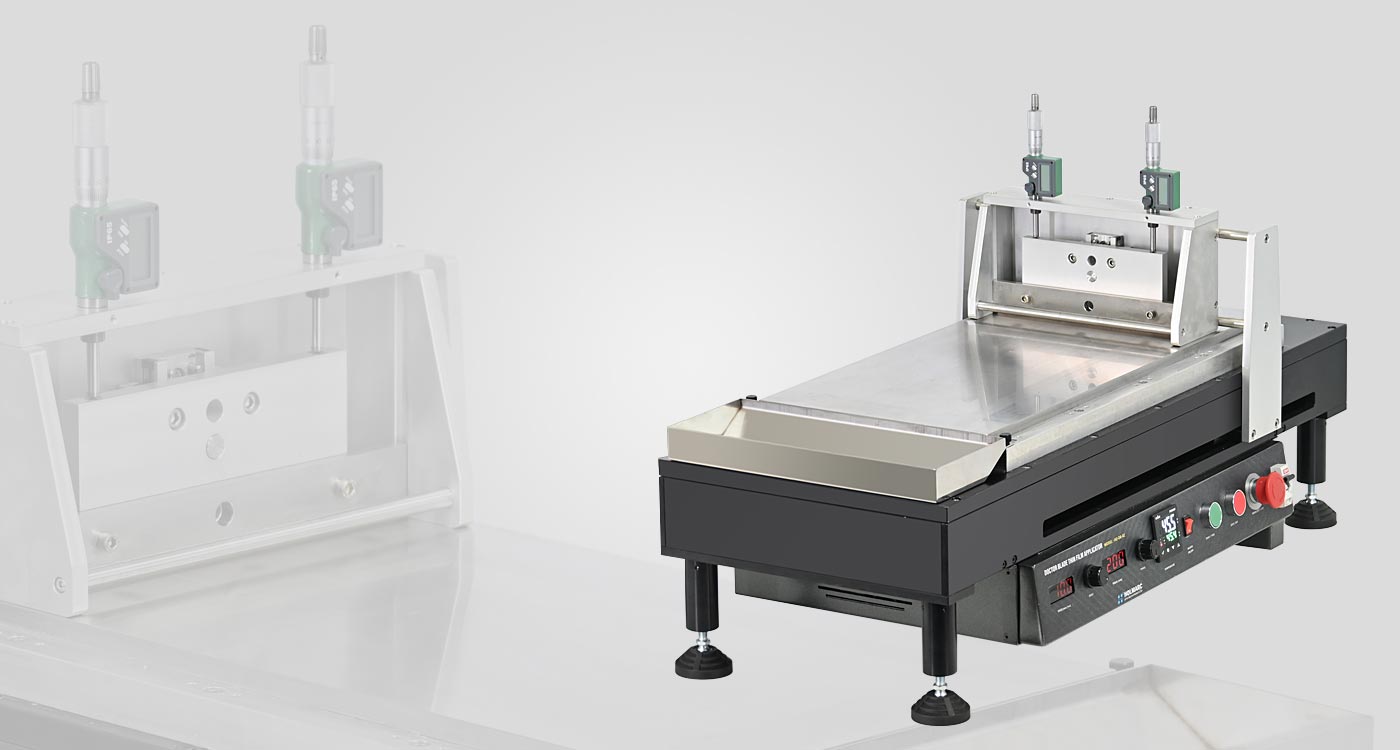

Doctor blade thin film applicator is a tool and a technique used to apply a thin, uniform layer of liquid or slurry material onto a substrate. It's a relatively simple yet versatile method widely employed in various laboratory and industrial settings for creating coatings and thin films.
It has a stainless steel hot plate with vacuum holding to place the substrate. The temperature is set using a digital PID controller on the front panel. The thickness of the film is set by adjusting the distance between the substrate and the doctor blade using a micrometer. The slurry can be poured on to the substrate and the blade is moved horizontally, at the press of a button, using a built-in motorized translation stage. The speed and travel are set using front panel knobs and these values are displayed using LED displays. Additionally, Windows software is supplied for PC based control. Equipped with a removable blade for easy cleaning and convenient maintenance.
