Kinematic Mirror Mounts


    Print

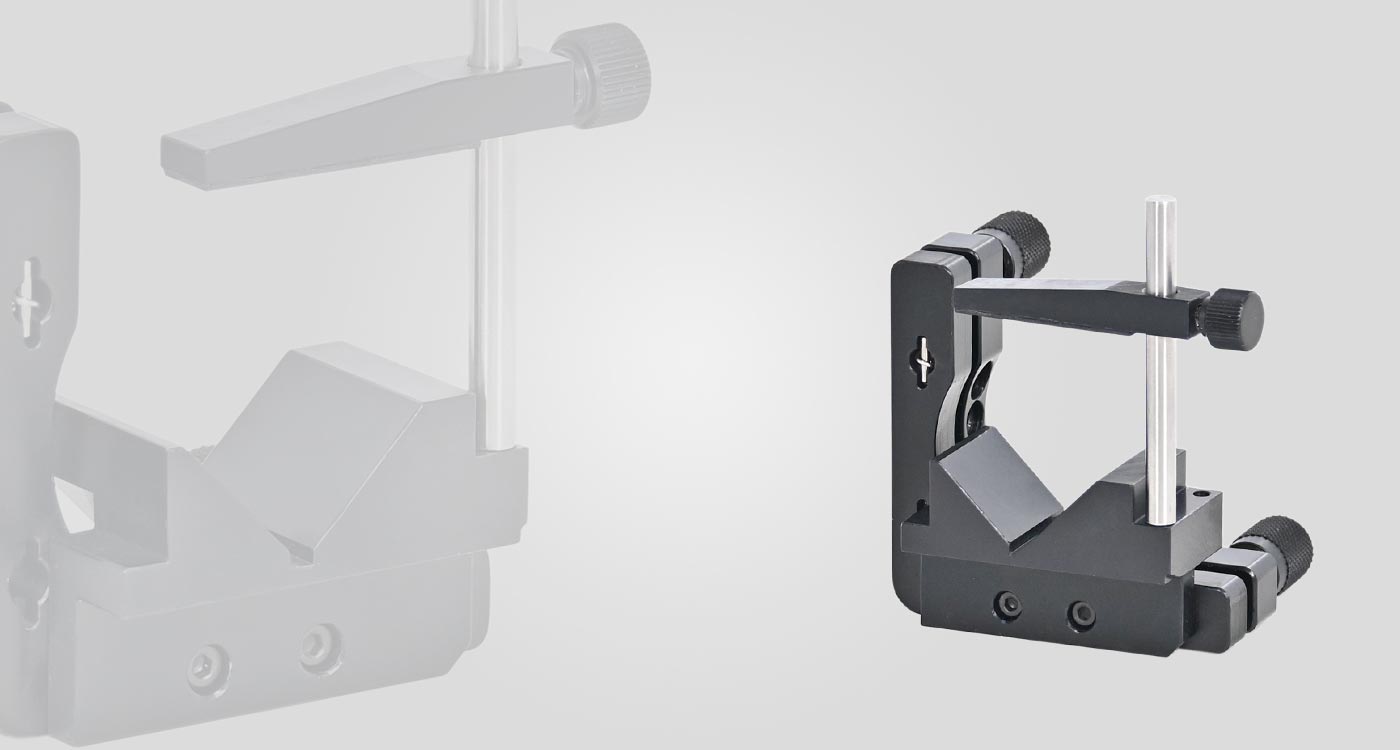

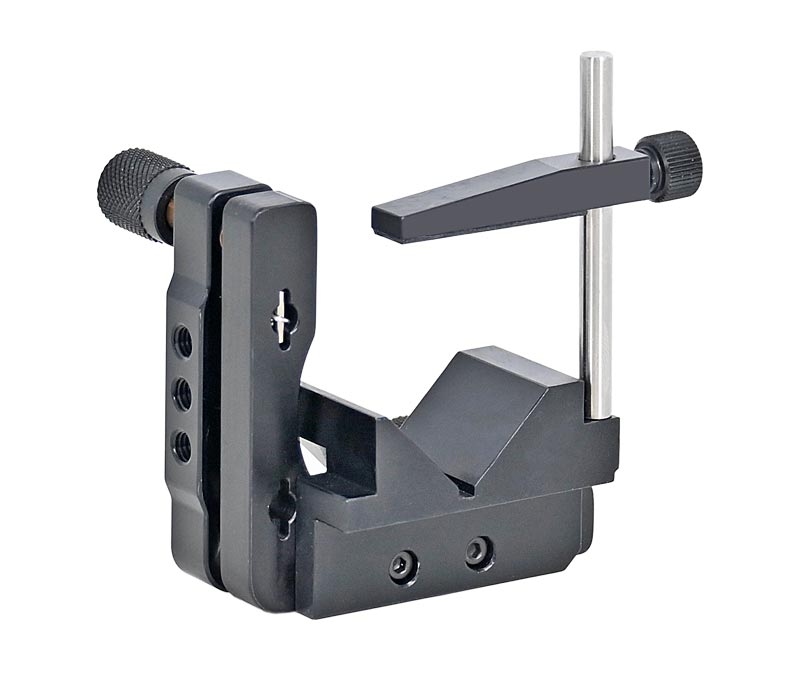

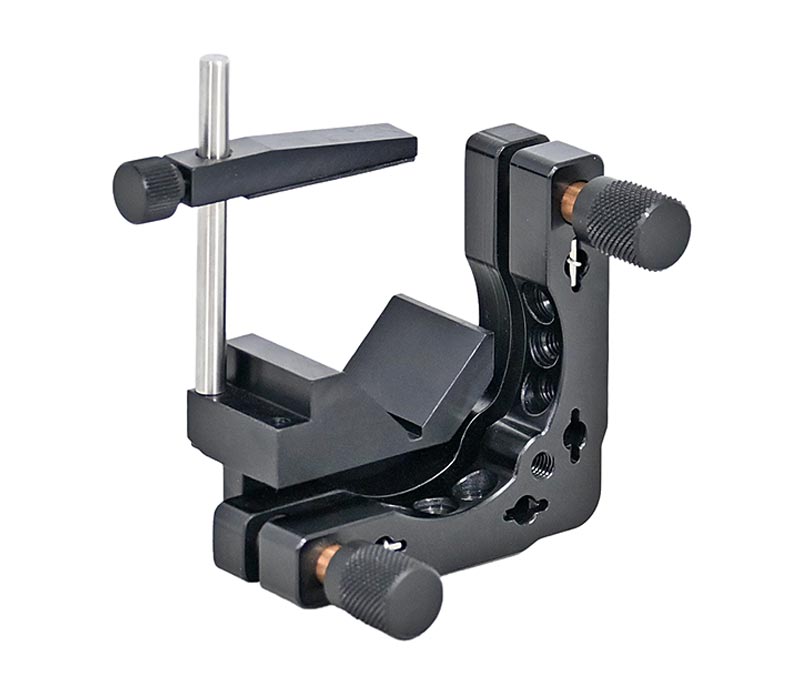

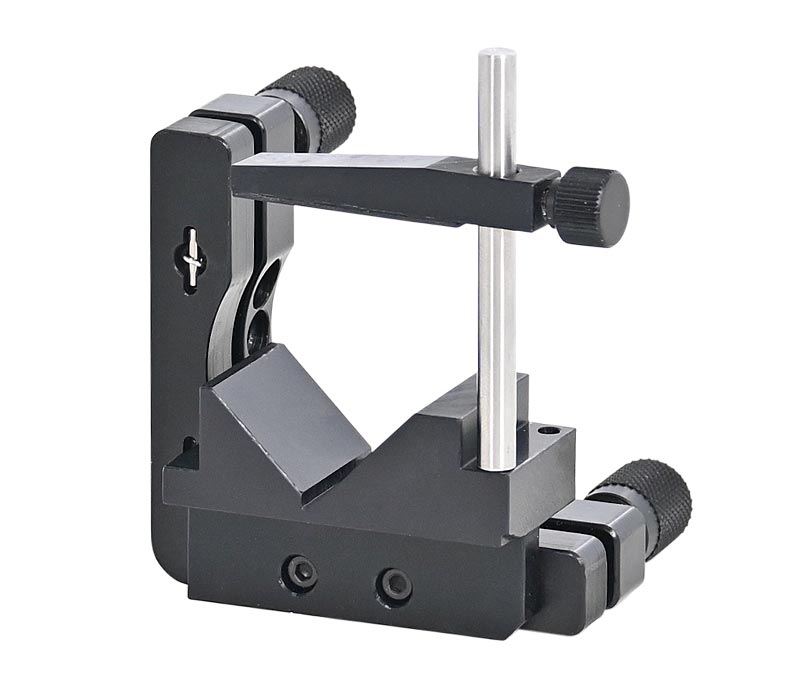

Kinematic V-Clamp Mount
KMVC Series
Black anodized finish
Lead Screw / Micrometer Drive
Prices are exclusive of taxes and other charges.
Currency

Kinematic V-Clamp Mounts provide ±4 degrees of precision tip and tilt adjustment for cylindrical objects. When post mounted, this kinematic V-clamp can achieve height adjustment by positionally changing the post within its mating post holder. The M4 thread adjuster screws come complete with a knurled knob for easy adjustment. These knobs can be removed to expose a hex socket, a feature that minimizes the opportunity for unwanted movement of the device. The mounts are fabricated from black anodized aluminum and the clamping arm posts are fabricated from stainless steel. The Kinematic V-Block Mount is making it ideal where precision tip and tilt adjustment of larger cylindrical objects, such as a Laser Diode Module, is required, allow this kinematic mount to handle loads of up to 1 kg (2.2 lbs). The M4 adjusters provide an adjustment per revolution of 5 mrad/rev.

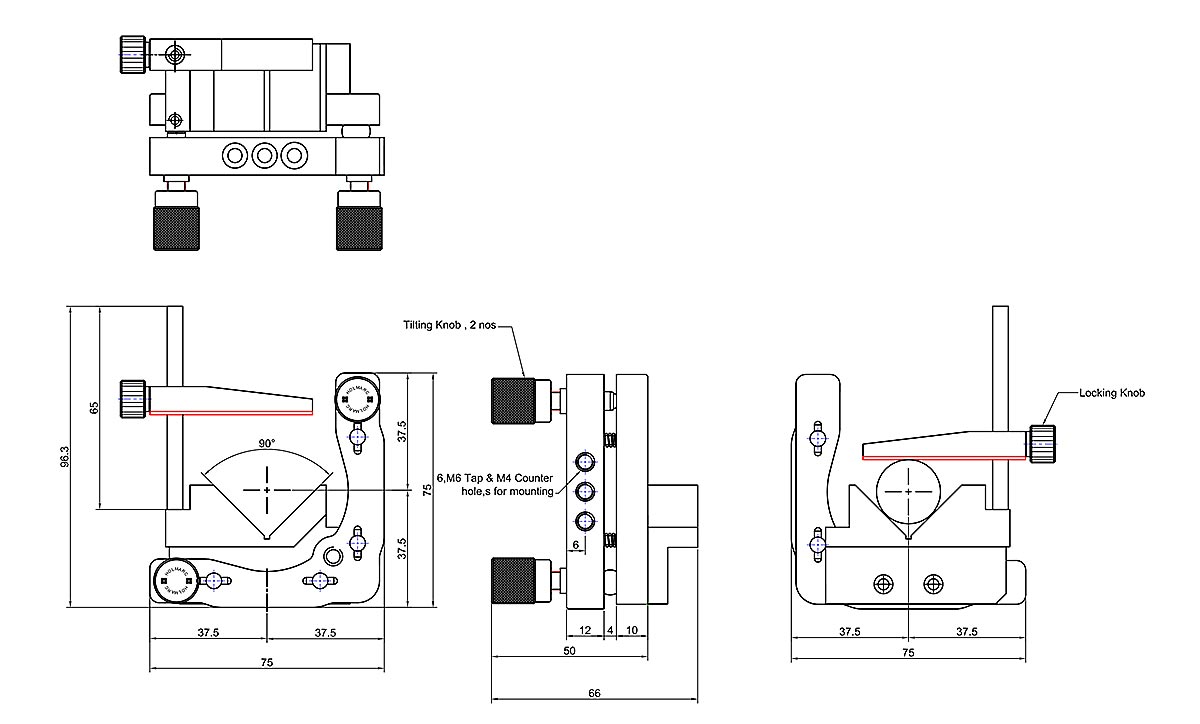

Model : KMVC-40
