Gimbal Mirror Mounts

Motorized
360° Travel θx / θy
Optics size ranges from 25 - 200mm

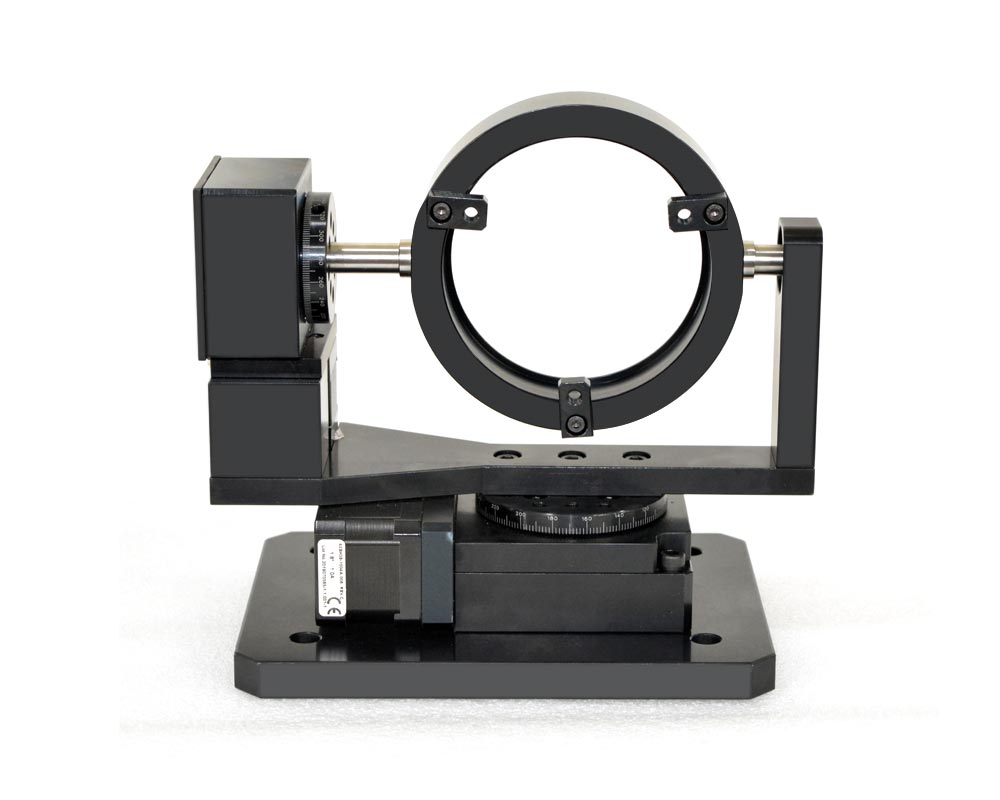

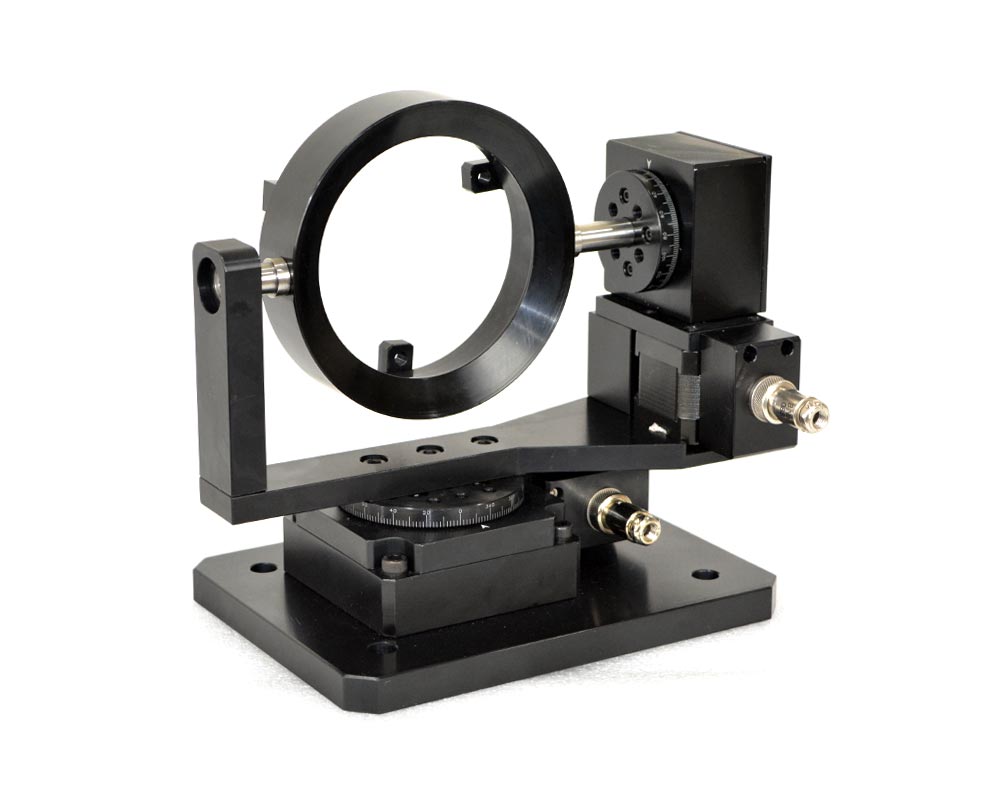

Gimbal mounts with stepper motor drives are suitable for remote positioning of the mirror in pitch and yaw directions. Suitable controller with hand held user interface is also available from Holmarc. Knob which is directly attached to motor shaft is provided for manual positioning of the mirror when ever required. These mounts are available for mirrors upto the size of 200 mm diameter as standard product. Holmarc can make these gimbal mounts for larger mirrors as well (up to 500 mm diameter). Please contact our application engineers for assistance.

*Dual axis controller and software will be sold separately.

    Travel θx / θy :     360°
    Positioning accuracy       0.1 degree
    Sensitivity θx / θy       4 arc sec.
    Mounting hole       M6 Slots
    Construction material       Aluminium alloy
    Finish       Black Anodized

Minimum incremental

Model No. Gear Ratio Half step resolution Motion Maximum speed
Azimuth Elevation Azimuth Elevation Azimuth Elevation Azimuth Elevation
MO-GMM-25 90:1 72:1 0.01 0.0125 0.00125 0.0015 16 20
MO-GMM-50
MO-GMM-75
MO-GMM-100
MO-GMM-4
MO-GMM-150 180 : 1 90 : 1 0.005 0.01 0.0006 0.00125 8 16
MO-GMM-6
MO-GMM-200 240 : 1 180 : 1 0.0038 0.005 0.0004 0.0006 6 8
MO-GMM-8

Model No. Optic size (mm) Optics bore size Mirror thickness Center height (mm) Positioning accuracy Drawings Price $
MO-GMM-25 25 / 1" 25.8 15 125 0.1degree 662.00
MO-GMM-50 50 / 2" 51.2 697.00
MO-GMM-75 75 / 3" 76.5 150 770.00
MO-GMM-100 100 100.5 20 1009.00
MO-GMM-4 4" 102   -
MO-GMM-150 150 105.5 25 190 1100.00
MO-GMM-6 6" 152.9   -
MO-GMM-200 200 200.5 250   1247.00
MO-GMM-8 8" 203.7   -
