Kinematic Platform Mount

KPM Series

Available for up to 90mm size

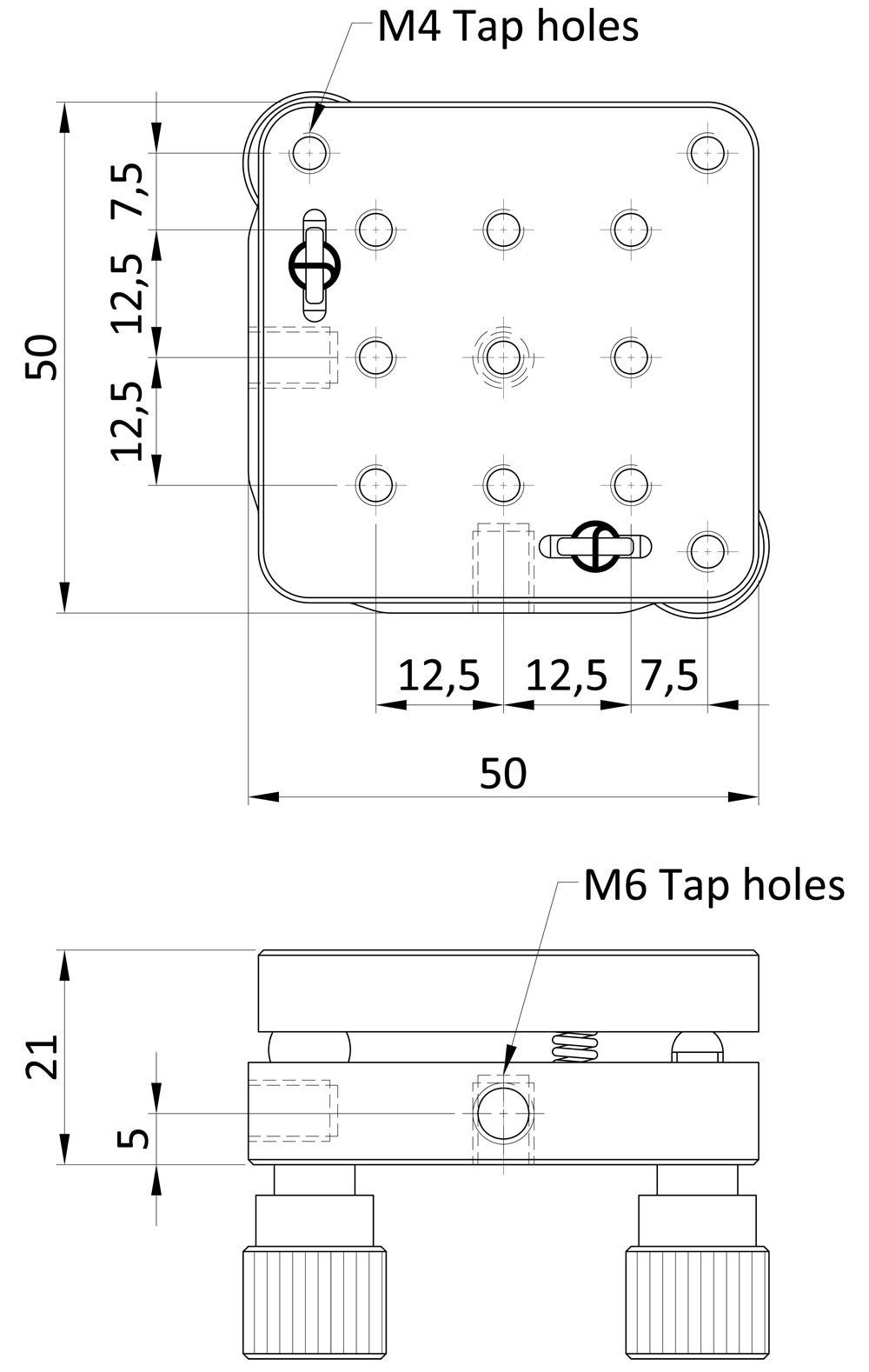

M6 and M4 tapped holes provided

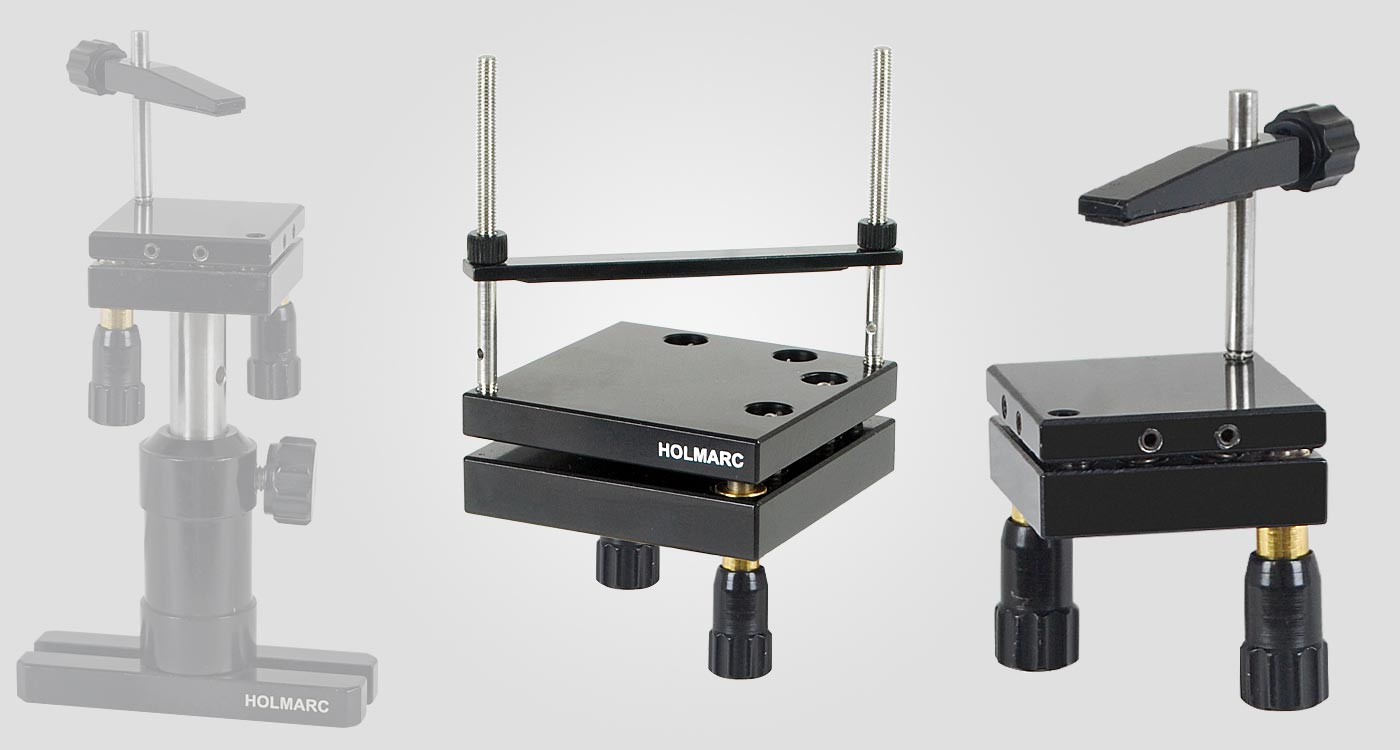

KPM series Kinematic platforms are available for optics up to 90 mm size. M6 and M4 tapped holes are provided on a 12.5 mm grid for mounting various optical or opto-mechanical components over the platform. M6 tapped holes are provided at the back plate of kinematic platform for post mounting applications ( 2 vertical positions and 1 horizontal position are possible ). Suitable prism clamps are provided along with kinematic platform.


    Angular tip / tilt :     +/- 3°
    Translation range :     6 mm (selected models only)
    Linear resolution :     0.25 mm
    Sensitivity :     4 arc sec.
    Mounting hole :     M6 / M4
    Mounting orientation :     Vertical & horizontal
    Material :     Aluminium
    Finishl :     Black anodized





Kinematic Prism Mount

KTM series kinematic prism mounts enable horizontal & vertical mounting. Left/Right orientations can be easily arranged using detachable platform.




Dual Axis Tilt Platform Mount

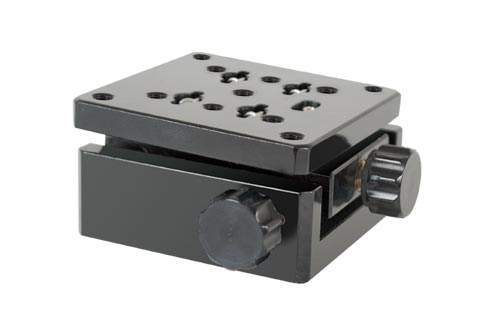

TRS series dual axis tilt platform mounts are available for optics up to 50 mm. M6 and M4 tapped holes are provided on a 12.5mm grid for mounting various optical...




Tilt and Rotation Stage

PMNP - R series prism / cube mounts have three degrees of freedom, two tilt and one rotation. M6 C’bored holes are provided at the base for...



Model No: Type Cube Size Drawing Price $
KPM-38 Kinematic platform mount
with Plain Surface
12.7 46.00
KPM-50 25 52.00
KPM-75 38 65.00
KPM-90 50 83.00
KPMS-38 Kinematic platform mount
with Single Post
12.7   65.00
KPMS-50 25   70.00
KPMS-75 38   83.00
KPMS-90 50   101.00
KPMD-38 Kinematic platform mount
with Dual Post
12.7   68.00
KPMD-50 25   74.00
KPMD-75 38   87.00
KPMD-90 50   105.00
Kinematic Platform Mount with Translation
KPM-T-38 Kinematic platform mount
with Plain Surface
12.7 52.00
KPM-T-50 25 57.00
KPM-T-75 38 70.00
KPM-T-90 50 88.00
KPMS-T-38 Kinematic platform mount
with Single Post
12.7   70.00
KPMS-T-50 25   76.00
KPMS-T-75 38   88.00
KPMS-T-90 50   107.00
KPMD-T-38 Kinematic platform mount
with Dual Post
12.7   74.00
KPMD-T-50 25   79.00
KPMD-T-75 38   92.00
KPMD-T-90 50   110.00
    # Note : Post, Post holder and Bases are sold separately
